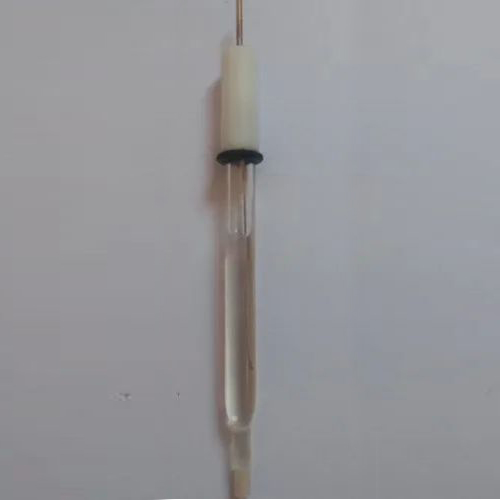

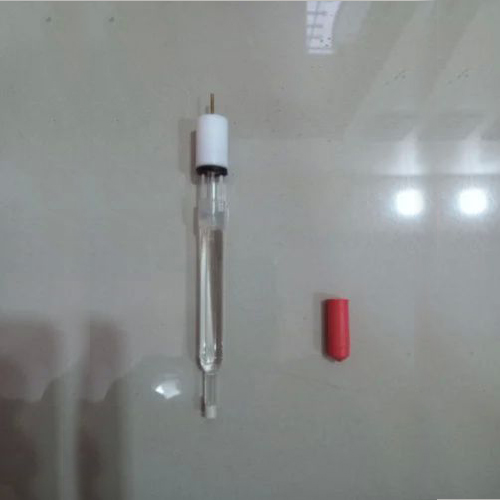

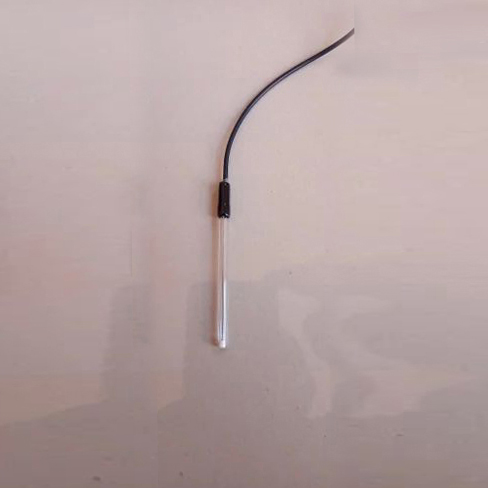

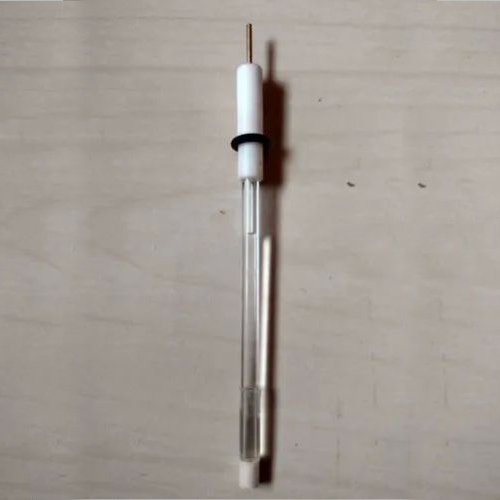

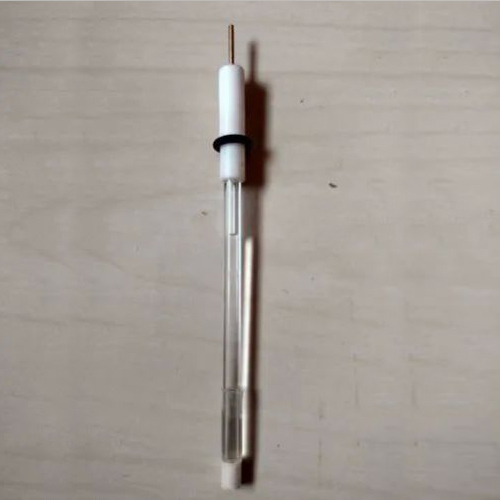

1) Ag/Agcl Reference Electrode

A silver chloride Reference electrode is a type of reference electrode, commonly used in electrochemical measurements like cyclic Voltametry or potentiometry.

Silver chloride reference electrode is the most commonly used reference electrode for testing cathodic protection corrosion control systems in sea water environments.

Porous Ceramic Tip is available for all the reference Electrode.

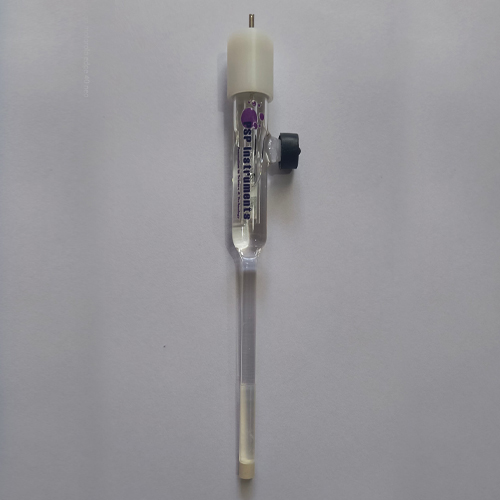

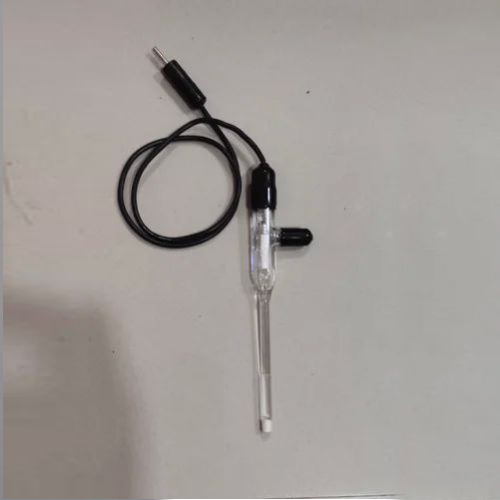

2) Calomel Reference Electrode

The Saturated calomel electrode (SCE) is a reference electrode based on the reaction between elemental mercury and mercury(I) chloride.

It is also used in an electrochemical measurement like electrochemical impedance study or corrosion study it’s also used in the measurement of spectrophotometer and PH meter.

Porous Ceramic Tip is available for all the reference Electrode.

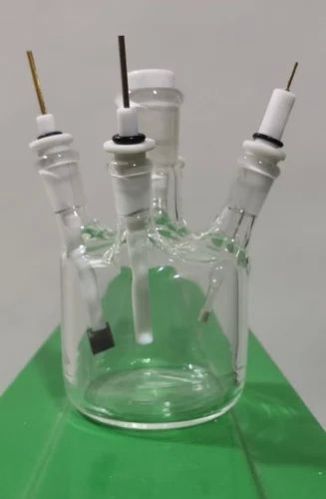

3) Five Neck Electrochemical Cell

Five Neck Electrochemical cell is the glass cell for electrochemical study its having the five nacked for inserting the reference electrode, working electrode and counter electrode.

Facility for inert Gas Purging. The diameter of three port is around 18 mm and the other two is 12 mm.

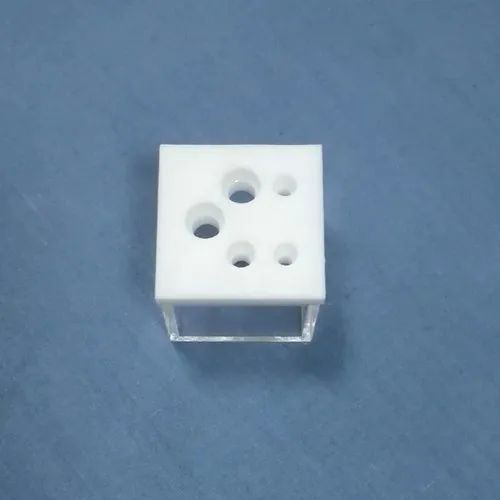

4) Small Volume Electrochemical Cell

It is a small scale electrochemical cell having the volume of 40ml and 20ml it has a Teflon seal with three hole for inserting the ref. counter and working electrode.

It is a custom made cell customer may specify the volume and insert diameter of the working electrode.

Is also inert gas purging facility.

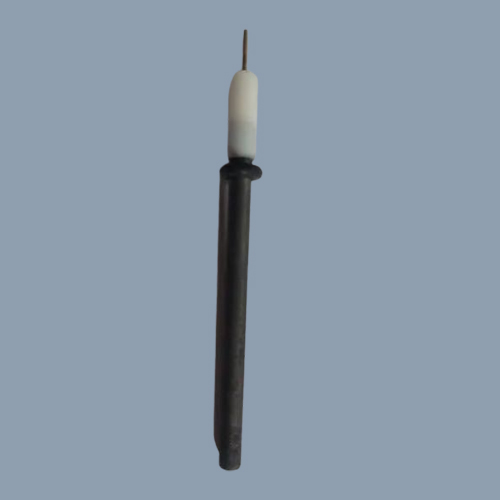

5) Graphite counter Electrode

Graphite Rods are use as a counter electrode in the Corrosion study as well as Electrochemical Impendence study.

It is made up of highly pure and imported material having the good porosity and conductivity. Customer may specify the length and diameter depend upon the cell

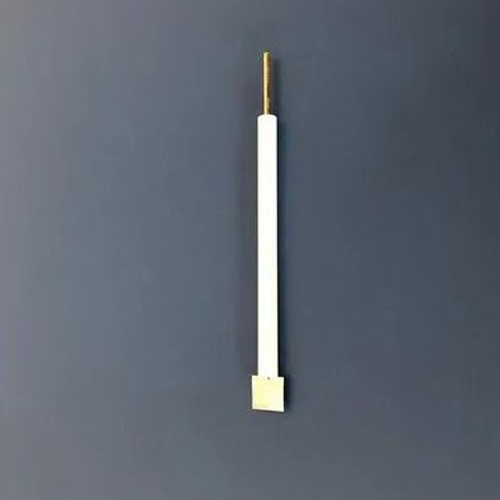

6) Platinum Counter Electrode

Platinum wire auxiliary electrodes (0.5 mm diameter) are available in a variety of lengths. The electrode of choice depends upon the type of cell and the experiment.

Platinum Wire Auxiliary Electrode 7.5 cm with gold-plated connector, mounted in Teflon cylinder.

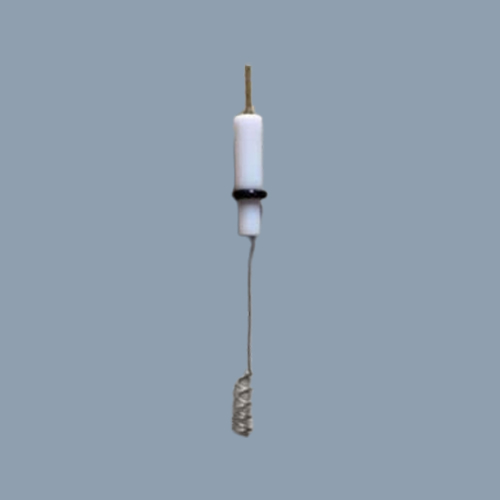

7) Platinum spring & mesh electrode

Platinum coil ( Spring) auxiliary electrodes (0.5 mm diameter) are available in a variety of lengths. The electrode of choice depends upon the type of cell and the experiment.

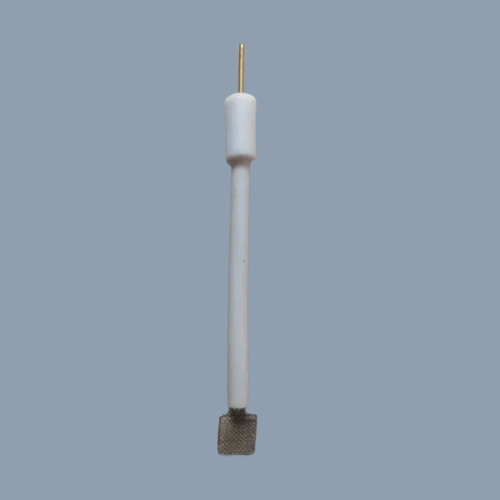

Platinum mesh electrode is also available please specify the mesh size and area of the mesh electrode.

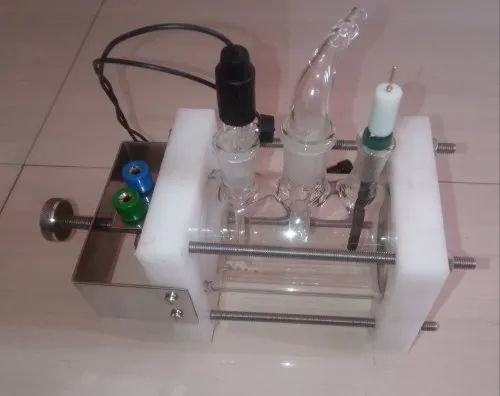

8) Para cell

Para cell or electrochemical corrosion cell is use to find out to connect the flat special up to 15 mm thickness and 0.1 to 2cm2 area customer specify the sample size.
Customer will Purge the electrolyte by inert gases by using purge tube. Graphite rod as a counter electrode and Calomel reference electrode is supply along with cell.

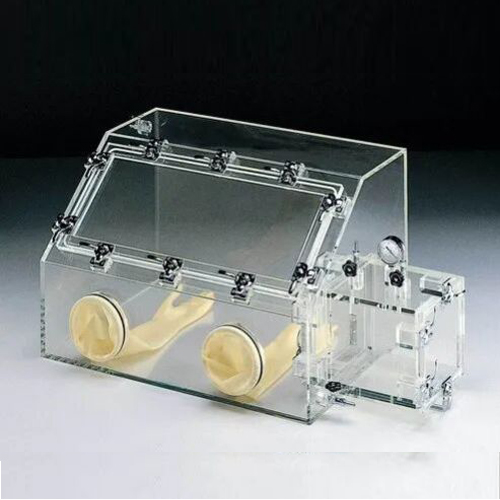

9) Acrylic Glow Box

Acrylic Glow Box is used to Generate inert atmosphere in particular volume. It can be vacuumed as per customer requirement. It is windily used in collage, university. Chemical as well as pharmaceutical industry.

It is made up of high quality acrylic material having the different size of thickness depend upon the application A Butyl Glows are used to carry out the experiment in the Glow Box.

10) Faraday Cage

A Faraday cage or Faraday shield is an enclosure used to block electromagnetic fields. A Faraday shield may be formed by a continuous covering of conductive material, or in the case of a Faraday cage, by a mesh of such materials. In an electrochemical reaction like corrosion or impedance it is used to reduce the noise. We provided the Faraday cage in the stainless steel SS316 and Aluminum Material.

11) Fuel Cell

A fuel cell is an electrochemical cell that converts the chemical energy of a fuel (often hydrogen) and an oxidizing agent (often oxygen) into electricity through a pair of redox reactions.

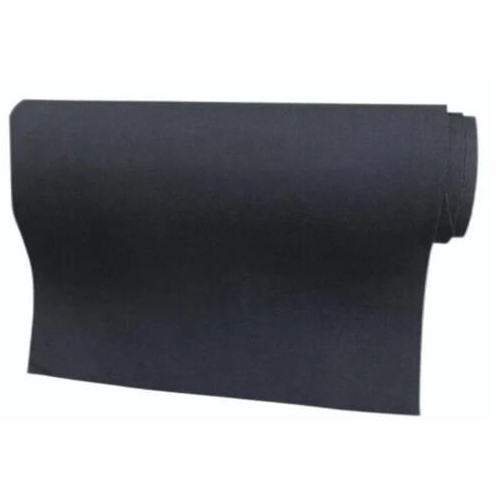

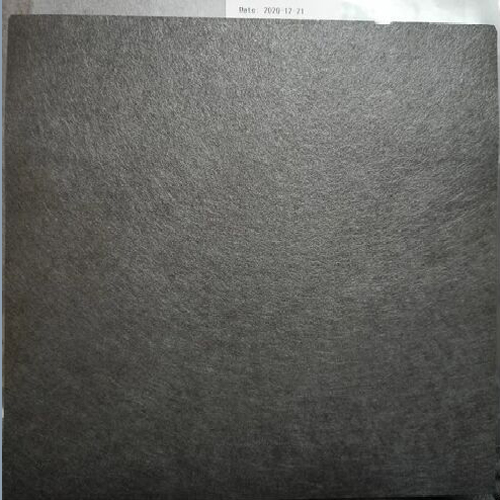

We provided single PEM fuel cell as well as stack. It is available is different sizes we also provided the component like carbon cloth, catalyst to make the of the fuel cell assembly

12) Water Permeability Tester

Water Permeability Tester is used to determine the flow capacity (water permeability) of Geotextile or Geotextile related products, by using constant head or falling head method. Permittivity is determined as per ASTM D4491.

• The main body is made of acrylic
• • Dimension of Textile Sample: 70 mm Diameter
• • Adjustable Range of Water Head: up to 250 mm
• • Accuracy of Water Head Column (Manometer Scale): up to 0.5 mm
• • Thickness range of specimen: 0.1 ~ 10 mm
• • Method of adjustment of Water Head: By changing the inlet flow.
